TVML-408

  1. Inquiry
  2. HEAKE TMVL Series 5-axis Traveling Machining Center (2025)
  1. Back to List
  2. Prev
  3. Next

Product Specification

Machine Dimensions

A B C D E
6800 8680 4385 4060 3400

Processing Range

Model A B C D E F
TVML-408 4000 4200 800 800 850 630

Table

Model A B C N D E F G H I
TVML-308 3000 850 50 6 125 18 30 30 12 630

Machine Specifications

Model Unit TVML-408
Rotary Table C-axis rotary table size mm ∅630
T-slot mm 18
Degree of C-axis deg. -360~+360
Max. rotating speed of C-axis min-1 50 / 200 (OP) / 600 (OP)
C-axis max. table loading kg 500
C-axis clamping method / pressure Mpa Hydraulic / 3~3.5
Indexing accuracy / repeatability sec. 10" / 4"
B-Axis Degree of B-axis deg. ±120
Max. rotating speed of B-axis min-1 16.6
B-axis clamping method / pressure Mpa Hydraulic / 2~2.4
Indexing accuracy / repeatability sec. 10" / 4"
Table Table size mm 4000 x 850
T-slot / T x W x D mm 5 x 18 x 125
Max. table loading kg 6000
3-Axis Travel X-axis travel mm 4200
Y-axis travel mm 800
Z-axis travel mm 800、1000 (OP)
Spindle Dist. from spindle to table surface (horizontal) mm 80~880、80~1080 (OP)
Spindle nose taper   #40、#50 (OP)
Pull stud of spindle   BBT、DIN (OP)、HSK (OP)、MAS BT (OP)、CAT (OP)
Max. spindle speed rpm 12000、15000 (OP)、20000 (OP)
Spindle / Servo Motors Spindle motor kw Siemens / Heidenhain controller: 7.5 / 22 kw　Fanuc controller 15 / 26 kw
Spindle transmission   Built-in
3-axis (X/Y/Z) rapid traverse rates M/min 20 / 30 / 30
Max. feed rate of cutting mm/min 15000
3-Axis
Specifications		 3-axis (X/Y/Z) linear ways   55 / 55 / 55 (6 x Black)
Linear ways type   Roller linear ways
3-axis transmission (X/Y/Z)   X, Y, Z: Ball screws
Ball screw cooling oil L G68 / 8L / Grease / 1L (OP)
ATC (Auto Tool Changer) Tool loading capacity   40T / 60T (OP)
Max. tool diameter mm #40-∅75、#50-∅125 (OP)
Max. tool weight kg #40-7、#50-15 (OP)
Max. tool length mm #40-300、#50-400
Others
(Below data are obtained when the machine is under well air conditioned and stable operating conditions)		 Chip removal method   Dual V sharped chip augers
Positioning accuracy / Repeatability mm 0.015 / 0.008、0.016 / 0.01
Power source required KVA 55~70
Air source required Mpa 0.65±10%
Machine weight kg 29

The series of machines can be equipped with 5 axes or 4 axes simultaneous controller (Fanuc. Siemens, Heidenhain)
As the machine manufacturer continuously conducts research and innovation on the machine structure and specifications, the above specifications are subject to change without prior notice.

Product Feature

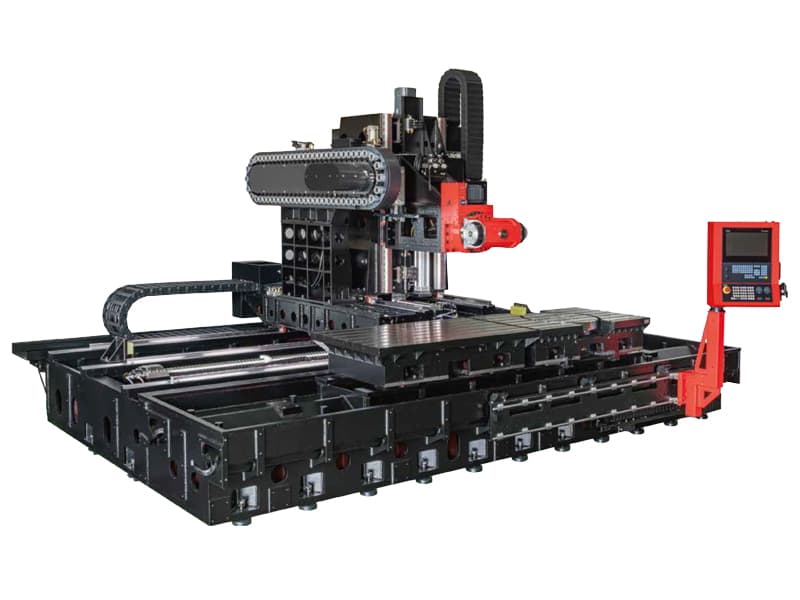

Traveling Column

The column moves along the X-axis and the table is fixed. Therefore, the workpiece weight does not affect the axis transmission system and dynamic machining accuracy.
Moreover, higher machining efficiency is obtained.

  • Extra Large Y-Axis Travel
    The specially designed extra large Y-axis travel provides increased machining range.
  • Smaller Footprint
    Compared with a double column milling machine under the same cutting conditions, HEAKE'S TVML series has a smaller footprint and higher accuracy.

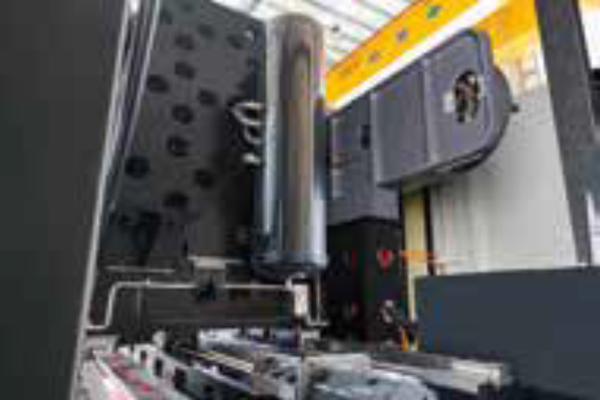

  • Reinforced Column Structure
    The thickness and Box-in-Box type structure designed of HEAKE'S TVML series have been reinforced to effectively avoid a pull-down force caused by the throat depth when the spindle is performing cutting.
  • Four Block Deployment
    Each linear guideway on the y-axis is equipped with four blocks (total of 8 blocks) to enhance rigidity.
  • Cooling Through Ball Screws (Oil / Air)
    With the use of cooling through the X, Y, Z-axis, the thermal expansion of the ball screws is reduced to a minimum, therefore ensuring high machining accuracy and stability of axial movement. (NEW type patent no, M.502117 in R.O.C)

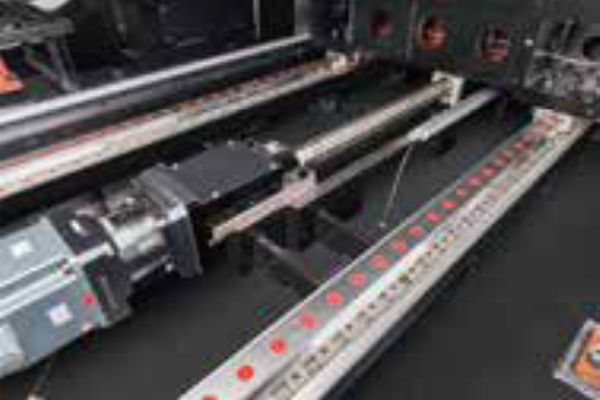

Ball Screw Support on X-Axis for 3M～4M Travel

  • X-axis feed is transmitted through the ball screw with support which eliminates the overhang problem for outstanding transmission efficiency.
  • X-axis is equipped with linear scales (standard accessories), ensuring high positioning and repeatability accuracy.

Rack Transmission on X-Axis for 4M～7M Travel

  • X-Axis power is transmitting through the German racks, which feature outstanding transmission efficiency of axis feed. Additionally, X axis is equipped with linear scales (standard accessories), which ensures positioning and repeatability accuracy is not affected by thermal expansion.

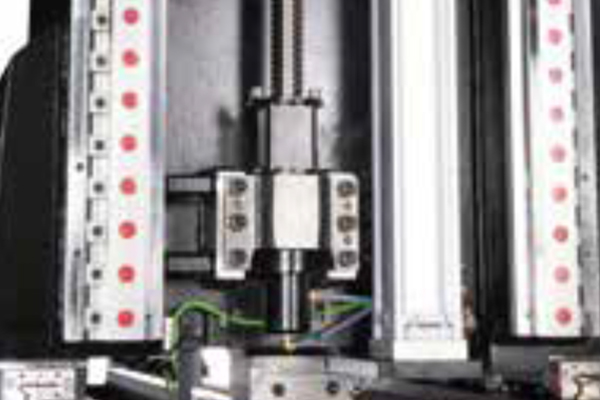

Roller Type Linear Ways on Three Axes

X, Y, Z-axis are fitted with SP class roller type linear guideways with outstanding features, such as high load resistance, high-rigidity, low friction co-efficient and excellent dampening capacity.

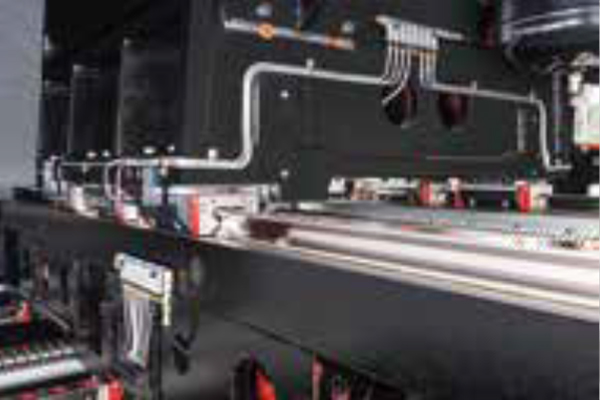

Linear Guideway Slide Block Cooling System

Independent Air Accumulator

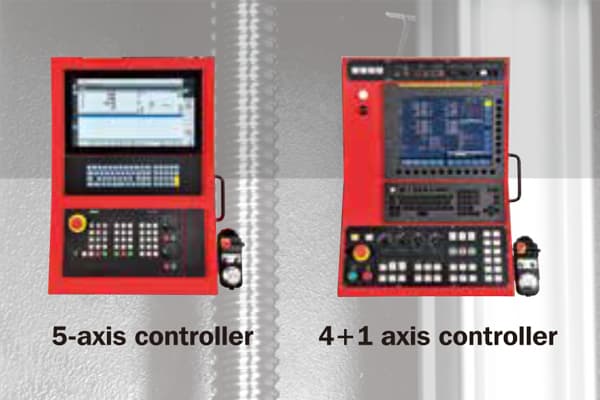

Choice of CNC Controllers

Heake offers two types of CNC Controller for customers to select, including 5-axis controller and 4+1 axis controller.

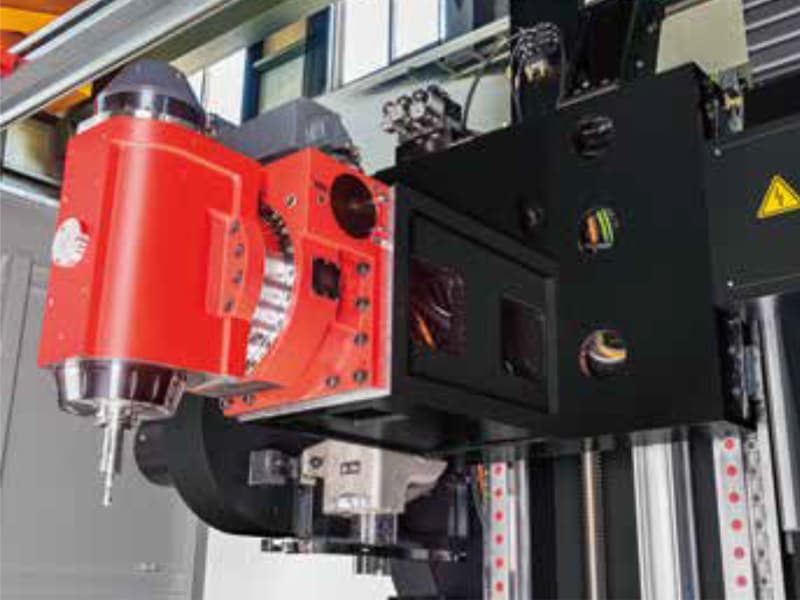

Roller Cam Drive Features on B-Axis

  • Zero Backlash
    Roller contact between the roller and the cam eliminates the positive reversal backlash problem, thus greatly improving the ultra-precision characteristics of the cam.
  • Ultra-High Efficiency Conduction
    Roller cam type turret functions in rolling mode, providing ultra-high conduction efficiency of over 90% at high speed operation.
  • No Thermal Displacement
    Roller cam drive dramatically reduces thermal displacement even at high speeds.
  • Equip with a standard optical scale to enhance machining precision.

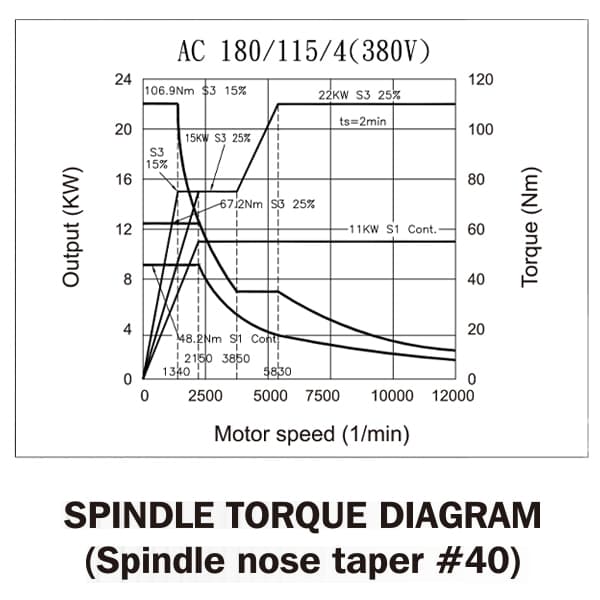

Built-In Type Spindle

  • The spindle features high precision, high-precision, high-speed, high-rigidity and low vibration.
  • Excellent for high-speed, high-precision machining where a fine surface finish is required.
  • Max. spindle speed: 12,000 rpm (Standard) / 15,000 rpm (Optional)

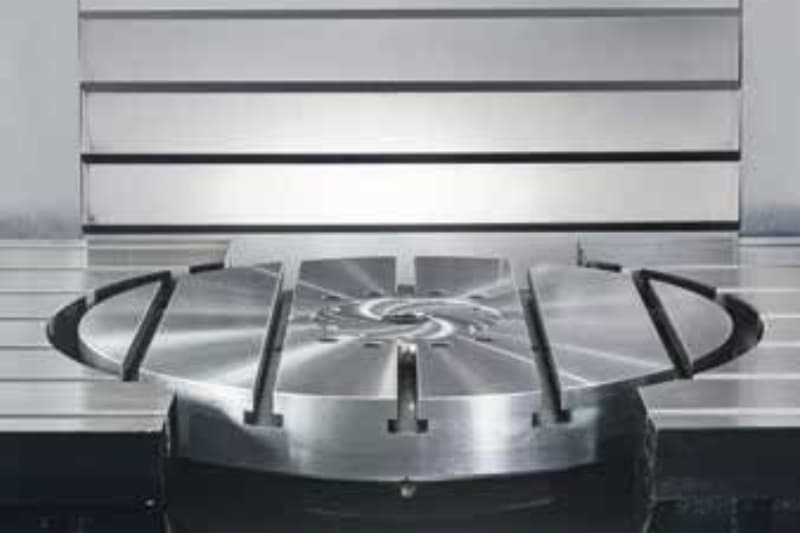

Direct Drive Rotary Table on C-Axis

  • The rotary table is embedded in the rectangular table.
  • Direct drive features backlash-free tansmission, ensuring outstanding machining accuracy and fine surface finish.
  • Indexing accuracy: 10 sec.
    Repeatability: 4 Sec.
  • Equip with a standard optical scale to enhance machining precision.
