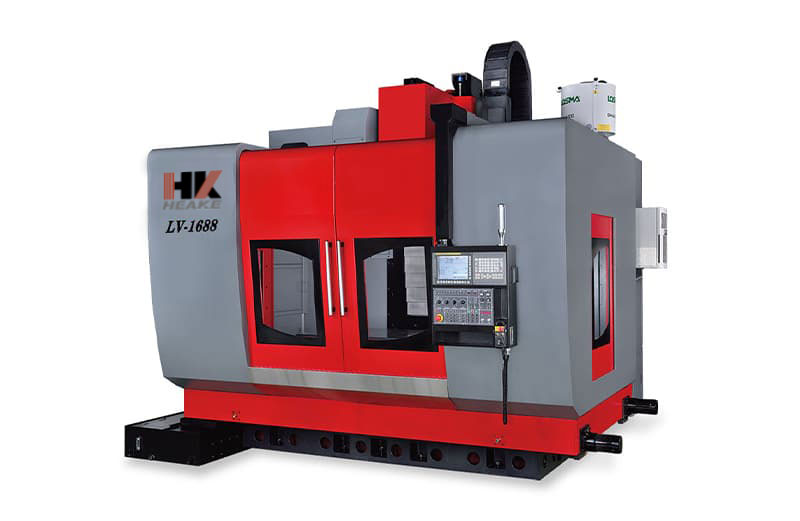

HK-LV1377 / HK-LV1577 / HK-LV1677


  • X-axis travel: 1350~1600 mm

  • Y-axis travel: 710 mm (OP:750 mm)

  • Z-axis travel: 720 mm

  • Spindle Taper: BBT40 / BBT50 (Taper Dual Contact)

  • Spindle speed:

    BBT40 12000/15000/18000 rpm direct drive

    BBT50 4000~8000 rpm gear drive ; 8000/10000 rpm direct drive

  • Spindle transmission (cont. /30 min): 11/15 kw ~ 15/18.5 kw

  1. Inquiry
  2. HK-LV Series VMC (2025)
  1. Back to List
  2. Prev
  3. Next

Product Specification

UNIT HK-LV1377 HK-LV1577 HK-LV1677
FANUC Oi-MF PLUS Controller
TABLE Table Size mm 1400 x 780 1600 x 780 1700 x 780
T-Slot (No. x Width x Pitch) mm 5 x 18(22) x 125
Max. Table Load kg 1500 2000 2300
TRAVEL X Axis mm 1350 1500 1600
Y Axis mm 710 (750) (*2)
Z Axis mm 720 (920) (*2)
Spindle Nose to Table Surface mm 150~870 (150~1070)
Spindle Center to Column Cover mm 795
SPINDLE Spindle Taper BBT (Taper Dual Contact)
Spindle Speed & Transmission rpm #40: 12000 direct drive (11/15 kW)
#50: 10000 direct drive (15/18.5 kW)
#50: 6000 gear drive (15/18.5 kW)
FEED Rapid Feed Rate - X/Y/Z axis m/min #40: 24 / 24 / 20 (16)
#50: 20 / 20 / 20 (16)
Cutting Feed Rate - X/Y/Z axis m/min 15 / 15 / 15
ATC Tool Storage Capacity #40: 24, 30 / 32 / 40 / 60 (Opt.)
#50: 24, 30 / 40 / 60 (Opt.)
Tool Shank Type BBT40 / BT50
Max. Tool Diameter x Length mm #40: Ø75 x 250 #50: Ø125 x 350
Without Adjacent Tool (diameter) mm #40: Ø125 #50: Ø250
Max. Tool Weight kg 7/15
ACCURACY ISO 230-2 A: 0.008 ; R: 0.006
ISO 10791-2 A: 0.008 ; R: 0.006
VDI 3441 (*1) P: 0.009 / PS: 0.006
PERIPHERALS Power Requirement KVA 35
Pneumatic Supply Mpa, l/min 0.6
Coolant Tank Capacity L 480
Footprint Size (W x D) mm 4200 x 3715
Machine Net Weight kg 13950 15800 16280

NOTE 1: The VDI 3441 employs a statistical method method by using 5 standard deviations, which can achieve a quality assurance level of 99.5%.
* As the machine manufacturer constantly conducts machine research and improvement, the machine specifications are subject to change without prior notice.
NOTE 2: HK-LV1377/1577/1677, if Y/Z-axis travel is changed to 700/680 mm, it can be packed into 40” HQ container.

Machine Dimensions

MODEL A B C D E F G H I
HK-LV1377 4200 3610 125 2754 655 3715 2138 2430 3075
HK-LV1577 4200 3610 125 2754 655 3715 2138 2430 3075
HK-LV1677 4200 3610 125 2754 655 3715 2138 2430 3075
MODEL A B C N T-SLOT D E F G H
HK-LV1377 1400 780 140 4 5 125 18 30 40 12
HK-LV1577 1600 780 140 4 5 125 18 30 40 12
HK-LV1677 1700 780 140 4 5 125 18 30 40 12

Machine Dimensions

MODEL A B C D E F G H I
HK-LV1377 4200 3610 125 2754 655 3715 2138 2430 3075
HK-LV1577 4200 3610 125 2754 655 3715 2138 2430 3075
HK-LV1677 4200 3610 125 2754 655 3715 2138 2430 3075
MODEL A B C N T-SLOT D E F G H
HK-LV1377 1400 780 140 4 5 125 18 30 40 12
HK-LV1577 1600 780 140 4 5 125 18 30 40 12
HK-LV1677 1700 780 140 4 5 125 18 30 40 12
