HK-LV960 / HK-LV1160 / HK-LV1265


  • X-axis travel: 950~1200 mm

  • Y-axis travel: 600~650 mm

  • Z-axis travel: 600~610 mm (OP:800~810 mm)

  • Spindle taper: BBT40 / BBT50 (Taper Dual Contact)

  • Spindle speed:

    BBT40 12000/15000/18000 rpm direct drive

    BBT50 5000 rpm gear drive

  • Spindle transmission (cont. /30 min): 11/15 kw ~ 15/18.5 kw

  1. Inquiry
  2. HK-LV Series VMC (2025)
  1. Back to List
  2. Prev
  3. Next

Product Specification

UNIT HK-LV960 HK-LV1160 HK-LV1265
FANUC 0i-MF PLUS Controller
TABLE Table Size mm 1000 x 600 1200 x 600 1300 x 600
T-Slot (No. x Width x Pitch) mm 5 x 18 x 100 5 x 18 x 100 5 x 18 x 100
Max. Table Load kg 600 1000 1200
TRAVEL X Axis mm 950 1100 1200
Y Axis mm 600 600 650
Z Axis mm 610 (810) 610 (810) 610 (810)
Spindle Nose to Table Surface mm 130-740 (940) 130-740 (940) 130-740 (940)
Spindle Center to Column Cover mm 655 655 655
SPINDLE Spindle Taper BBT (Taper Dual Contact) BBT (Taper Dual Contact) BBT (Taper Dual Contact)
Spindle Speed & Transmission rpm #40: 12000 direct drive (11/15 kW)
#50: 10000 direct drive (15/18.5 kW)
#50: 6000 gear drive (15/18.5 kW)		 #40: 12000 direct drive (11/15 kW)
#50: 10000 direct drive (15/18.5 kW)
#50: 6000 gear drive (15/18.5 kW)		 #40: 12000 direct drive (11/15 kW)
#50: 10000 direct drive (15/18.5 kW)
#50: 6000 gear drive (15/18.5 kW)
FEED Rapid Feed Rate - X/Y/Z axis m/min #40: 36 / 36 / 36
#50: 24 / 24 / 24		 #40: 32 / 32 / 30
#50: 24 / 24 / 24		 #40: 30 / 30 / 24
#50: 24 / 24 / 24
Cutting Feed Rate - X/Y/Z axis m/min 15 / 15 / 15 15 / 15 / 15 15 / 15 / 15
ATC Tool Storage Capacity #40: 24, 30 / 32 / 40 / 60 (Opt.)
#50: 24, 30 / 40 / 60 (Opt.)		 #40: 24, 30 / 32 / 40 / 60 (Opt.)
#50: 24, 30 / 40 / 60 (Opt.)		 #40: 24, 30 / 32 / 40 / 60 (Opt.)
#50: 24, 30 / 40 / 60 (Opt.)
Tool Shank Type BBT40 BBT40 BBT40
Max. Tool Diameter x Length mm #40: Ø75 x 250
#50: Ø125 x 300		 #40: Ø75 x 250
#50: Ø125 x 300		 #40: Ø75 x 250
#50: Ø125 x 300
Without Adjacent Tool (diameter) mm #40: Ø125
#50: Ø250		 #40: Ø125
#50: Ø250		 #40: Ø125
#50: Ø250
Max. Tool Weight kg 7/15 7/15 7/15
ACCURACY ISO 230-2 A: 0.006 ; R: 0.005 A: 0.006 ; R: 0.005 A: 0.006 ; R: 0.005
ISO 10791-2 A: 0.006 ; R: 0.005 A: 0.006 ; R: 0.005 A: 0.006 ; R: 0.005
VDI 3441 (*1) P: 0.008 / PS: 0.005 P: 0.008 / PS: 0.005 P: 0.008 / PS: 0.005
PERIPHERALS Power Requirement KVA #40: 30, #50: 35 #40: 30, #50: 35 #40: 30, #50: 35
Pneumatic Supply Mpa, l/min 0.6 0.6 0.6
Coolant Tank Capacity L 390 390 390
Footprint Size (W x D) mm 3650 x 3335 3650 x 3335 3650 x 3335
Machine Net Weight kg 9050 10800 11500

Machine Dimensions

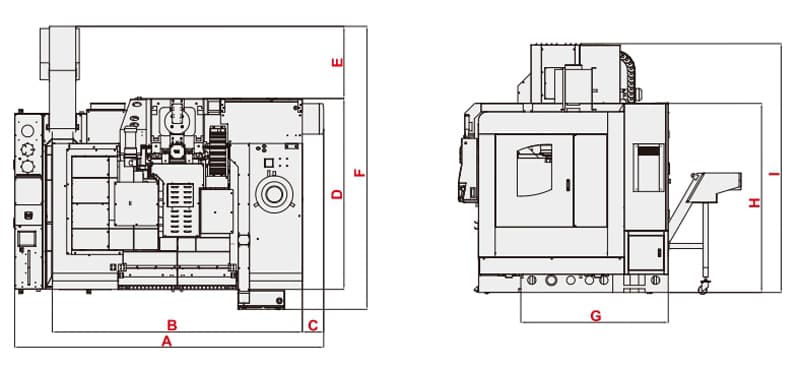

MODEL A B C D E F G H I
HK-LV960 3650 2950 255 2250 855 3335 1750 2230 2935
HK-LV1160 3650 2950 255 2250 855 3335 1750 2230 2935
HK-LV1265 3650 2950 255 2250 855 3335 1750 2230 2935

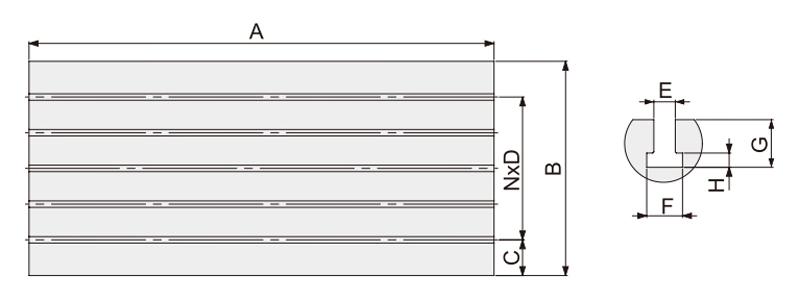

MODEL A B C N T-SLOT D E F G H
HK-LV960 1000 600 100 4 5 100 18 30 40 12
HK-LV1160 1200 600 100 4 5 100 18 30 40 12
HK-LV1265 1300 600 100 4 5 100 18 30 40 12
